Square Wedge Loc Flooring
Precision grain storage flooring emphasizing durability and installation efficiency.
Product Overview
Our Square Wedge Loc Flooring system provides a reliable foundation for your grain storage needs. Engineered for easy installation and long-term performance, this flooring system creates a secure, sealed environment for your grain.

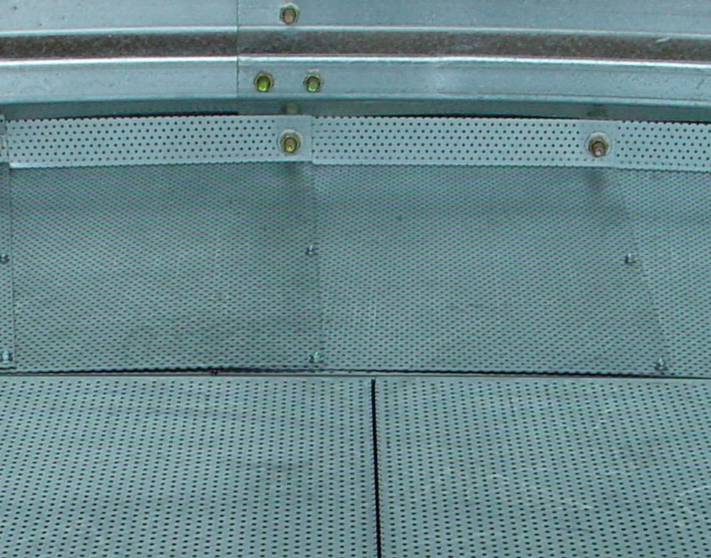

1. Precision Flashing
Pre-punched, galvanized flashing sections are contoured for perfect alignment with bin sidewalls, creating secure, sealed connections that protect your grain.

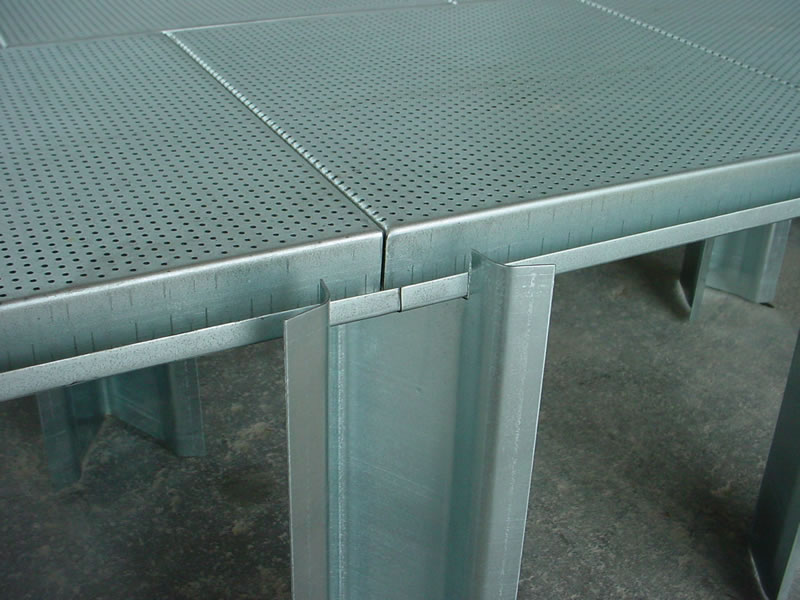

2. Interlocking Floor System
20-gauge Grade D galvanized steel construction with a minimum yield strength of 50,000 psi. Panels interlock to form smooth seams, supported by 12-inch high leg assemblies (pre-cut) that facilitate cleaning and maintenance.
3. Versatile Capacity Range
Suitable for bins with diameters of 14–60 feet and eave heights up to 30 feet, providing flexibility for various storage requirements.
Technical Specifications
| Feature | Specification |
|---|---|
| Material | 20-gauge Grade D galvanized steel |
| Minimum Yield Strength | 50,000 psi |
| Support Height | 12-inch high leg assemblies (pre-cut) |
| Bin Diameter Range | 14' – 60' |
| Maximum Eave Height | Up to 30' |
| Flashing | Pre-punched, galvanized, contoured sections |
Key Benefits
- Easy installation with pre-cut components
- Durable galvanized steel construction
- Smooth interlocking seams for grain protection
- Elevated design facilitates cleaning and maintenance
- Secure, sealed connections with bin sidewalls
- Compatible with a wide range of bin sizes
